Naval technical office
Our core services are the following:
- Construction and refurbishment projects
- Conducting inclining tests and producing stability books
- Flag registration
- CE certification
- Surveying and planning

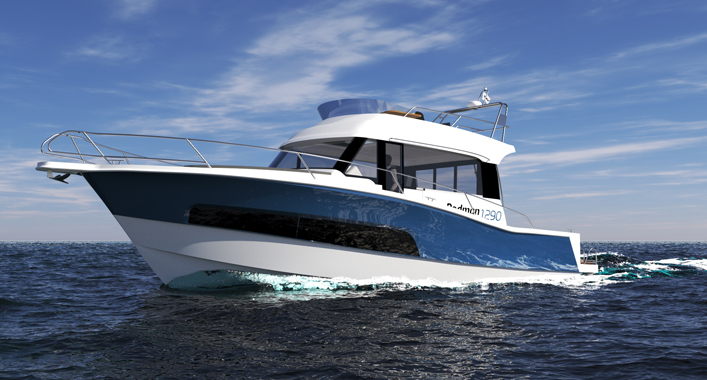

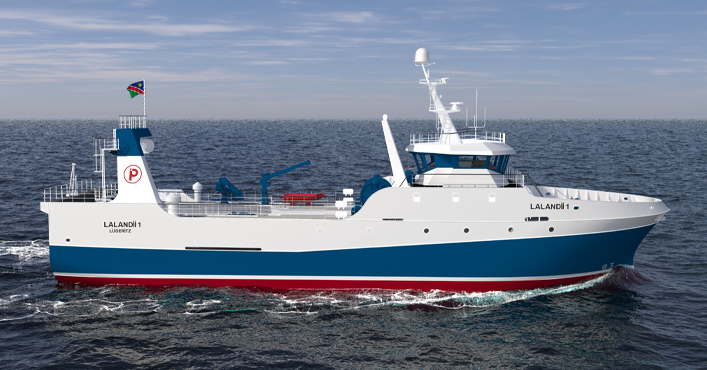

- 3D design of boats and ships
“ We have worked with a wide range of classification societies
in a variety of locations. Our team of engineers provides technical assistance in all corners of the planet.”
Mozambique
Peru
Namibia
Portugal
Fiji
New Zeland
UK
Spain
El Salvador
Argentina
“ We pride ourselves on offering the highest standards of service; our door is always open and we approach every project
with the utmost dedication.”
We offer our clients a comprehensive construction planning service, ranging from 2D plans to 3D models and detail drawings.
We advise clients and liaise with shipyards from the first drafts through to final delivery. We pride ourselves on offering the highest standards of service; our door is always open and we approach every project with the utmost dedication.
3D Measurement
We employ 3D measurement to provide meticulous detail and precision.
At INGEMAR Naval Architects, we started measuring boats and ships with 3D LASER SCANNER technology in 2014, and we currently use 3D laser equipment to take 90% of our measurements.
We have carried out numerous boat and ship scanning jobs, employing this technology on everything from hulls to superstructures and holds, as well as for moulds. The purpose has chiefly been to create 3D models of the current ship and/or refurbished design, or to produce accurate 2D plans.
Figure 1. Printed 2D plan.
3. Results
2D plans and 3D models
The final products we can offer our clients include 2D plans (figure 1) and 3D models (figure 2). The scans can also serve as the starting point for refurbishment design proposals. Either way, top quality is guaranteed.
2. Equipment
The choice of equipment depends on the following factors:
- The level of detail desired by the client
- The precision desired
- How the data will be used
- The location where the measurements will be taken
- The turnaround time required
Figure 2. 3D model.
1. Set-up
Beaching
To take the measurements, the vessel must be beached, properly chocked, dry and dust-free.
”
